HV toroidal transformer in a 19"-insertion 3kV 50 kVDC


Datasheet as PDF
Static and magnetic screened high potential separating transformer as toroidal construction conform to VDE 0570 EN 61558



cesym-hv2


HV toroidal transformer

BV 3305002


Customer’s solution


We are in need of a power supply with 3 kVA power and 50 kV DC over earth potential. Our sensitive measurement devices may not be interfered by stray fields of the transformer. Line disturbances should be filtered and the isolating transformer has to be safeguarded by the rated current. A 19” aluminium housing should be used for the installation.


Solution

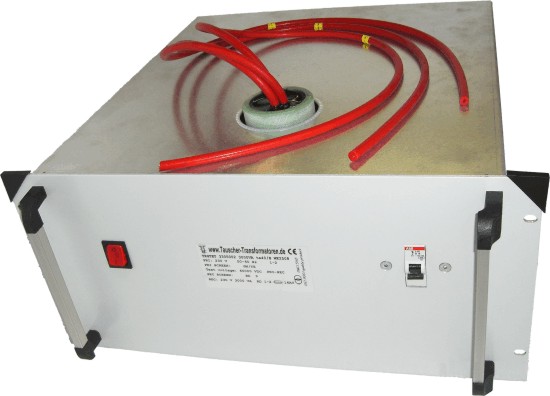

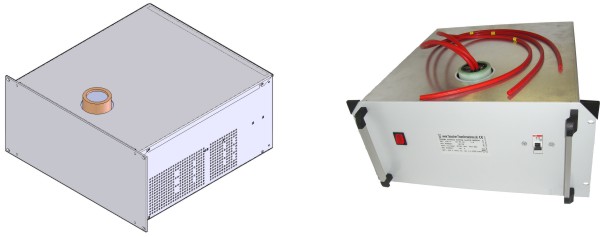

We build a high potential isolating transformer with a low stray field toroidal construction. Additionally the transformer is mounted in a screening housing made of mu-metal and as last it is placed in a 19” housing. A current inrush avoider is set in front of the primary winding to be able to safeguard with the rated current. The high voltage output is feasible by a HV-transit and with HV-laces.


Technical data


Frequency: 50 Hz up to 60 Hz
Test voltage: 60 kVDC
Isolating voltage: 50 kVDC
Primary: 230 V
Secondary: 230 V
max. ambient temperature: 40°C
Magnetic screening by mu-metal housing
Static screening by a primary and secondary screen
Safeguarding with the rated current is possible by using a current inrush avoider


Further examples


Type

Type size

Sec. power

Isolating voltage DC

Dimensions

Copper weight

Total weight

BV

Inch

HE

Without screen

TRGFEP

2000 VA

20 kV

19”

4 HE

12,2 kg

30 kg

1170010

Without screen

TRGFEP

7000 VA

20 kV

19”

5 HE

20 kg

50 kg

1170011

Without screen

TRGFEP

7000 VA

30 kV

19”

5 HE

20 kg

50 kg

1448011

With screen

TRGTEP

3000 VA

50 kV

19”

5 HE

12,2 kg

33,2 kg

3305002a

Technical changes and optimisation reserved. All details are guide values, variations are possible.

03/2023


Toroidal isolating transformer in 19" housing
