High potential HV insulating toroidal transformers


Datasheet as PDF
high potential - high voltage isolating transformer up to 80 kV potential separation pri - sec and a power of 1 VA up to 3000 VA



ceenergysymb-schutzisoliertsymb-RoHssym-hv

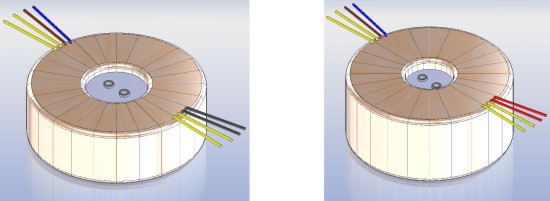

High potential isolating toroidal transformer

BV 1539048 and BV 1539049

Isolating transformer


Fields of application


High voltage isolating transformers are used to supply users, which are on a high potential against earth.


Description


High voltage isolating transformers with a solid construction. Very low temperature rise and low losses.


Special types


  • other voltages or other various secondary voltages
  • other insulating voltages
  • higher power


Table, sorted by isolating voltage


Type

Type size

Sec-
power

Isolating
voltage

Dimensions in [mm]

Copper
weight

Total
weight

BV

d

h

HTT 1000-15

TROFHT

1000 VA

15 kV

210

75

3,6 kg

11 kg

1539048

HTT 1600-157

TROFHT

1600 VA

15 kV

215

100

5,5 kg

14 kg

1539049

Technical changes and optimisation reserved. All details are guide values, variations are possible.
