Cast resin high voltage transformers up to 40 kV


Datasheet as PDF
High voltage transformers up to 40 kV and with a power of 1 VA ... 10 000 VA



cesym-hv1sym-hv2


High voltage transformer up to 40 kVCast resin high voltage transformers up to 40 kV


Description


Test transformers are used to generate high, distortion free voltages at relatively low power. Because of that high voltage test transformers differ from power transformers in construction and dimensions. Test transformers are one-phase constructions and they have a high winding ratio. As a result of high voltages that have to be insulated comparatively huge isolation spaces are needed and as a consequence high magnetic stray fields resp. high short circuit voltages Uk occur. The iron core is constructed in a way that makes the flux density roughly remain in the linear area of the characteristic magnetisation diagram. Cheap sophisticated and environmental-friendly substitution for oil-immersed transformers.


Fields of application


High voltage transformers are often used for test transformers e.g. for area insulating materials.


Technical data


1AC-high voltage transformer
Voltage range primary: 230 V
Voltage range secondary: 30 kV
Rated power: up to 30 kVA
Insulation pri-sec: 45 kVDC
Frequency: 50 Hz
Construction: open - winding potted


Table


Type

Type size

Sec
power

Sec
voltage

Dimensions in [mm]

Copper
weight

Total
weight

BV

l

b

h

TUV..H

UI 168/58

400 VA

20 kV

225

120

275

8,9 kg

27,5 kg

-

TUV..H

UI 168/58

500 VA

22 kV

280

170

230

8,9 kg

27,5 kg

26053001

TUV..H

UI 168/58

600 VA

24 kV

225

120

275

8,9 kg

27,5 kg

-

TUV..H

UI 168/58

2000 VA

7 kV

225

120

275

8,9 kg

27,5 kg

-

TUV..H

UI 210/73

2000 VA

15 kV

280

198

416

23 kg

55 kg

3004001

TUV..H

UI 210/73

2250 VA

15 kV

280

145

330

18,1 kg

55 kg

3372001

TUV..H

UI 300/100

3000 VA

30 kV

400

290

550

25,2 kg

120 kg

1977002

TUV..H

UI 300/100

10 kVA

15 kV

400

290

550

25,2 kg

120 kg

1632001

TUV..H

UI 330/100

25 kVA

8 kV

940

650

790

46,5 kg

210 kg

2889004

TUV..H

UI 360/150

50 kVA

6 kV

510

320

670

247 kg

420 kg

17061009

TUV..H

UI 480/150

75 kVA

15 kV

595

475

880

148 kg

480 kg

3224016

TUV..H

UI 620/140

15 kVA

30 kV

700

450

1000

80 kg

400 kg

-

TUV..H

UI 620/140

30 kVA

30 kV

700

450

1000

80 kg

400 kg

-

TUV..H

UI 720/160

10 kVA

40 kV

800

500

1200

100 kg

600 kg

-

Technical changes and optimisation reserved. All details are guide values, variations are possible.

02/2023

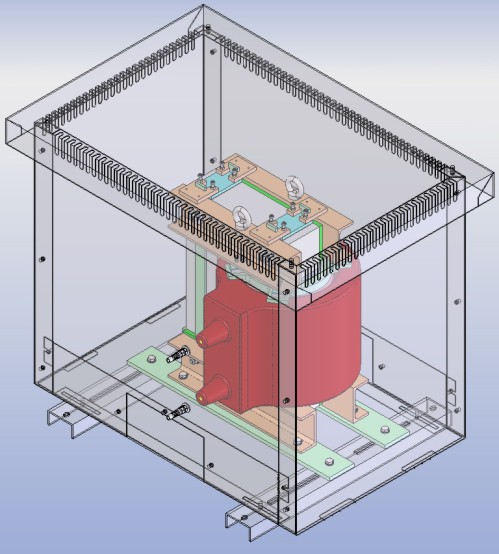

high voltage transformer
