Mains transformer water and dirt resistant


Datasheet as PDF
Safety and isolating transformer conform to EN 61558-2-4 with a test voltage of 5000 V / 50 Hz pri - sec and a power of 80 VA up to 520 VA.
IP 54 conform to DIN 60529, IEC 529, VDE 0470 - higher dirt classes conform to IEC 60947 are possible.



cehydro_signpd_ip_sign61558_onk61558_okf-sm61558_vnk61558_kfsymb-schutzisoliert


Fields of application


Outdoor installation, industrial environment, automotive environment, environment with marked contamination layers, tropical area, swimming and sanitary technology


Description


The transformer is built in a housing IP 54. The abbreviation IP means conform to DIN “International Protection” but is used as “Ingress Protection” in the english-speaking area.
5 means: Even though dust infiltration it will be warranted that the device is working satisfactorily. Furthermore it is not possible to get ingress to dangerous parts with a wire.
4 means: Splash-proof; water that sputters from every direction towards the transformer may not have any harmful effects.


Mains transformer

Type

Type size

Sec
power

Efficiency µ

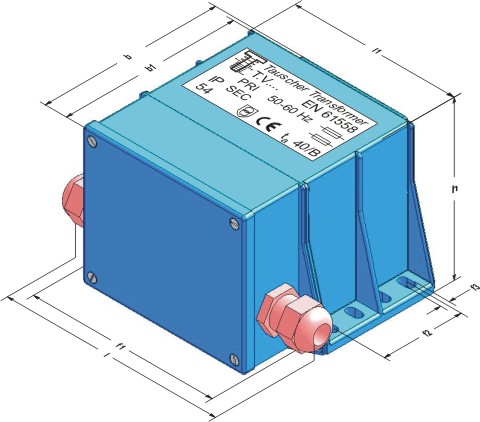

Dimensions in [mm]

Mounting holes

Copper
weight

Total
weight

b

b1

l

l1

h

f1

f2

f3

TEV

EI 84/29,5

80 VA

86 %

103,5

92

120

93,5

77

102,5

32,5

5,5

300 g

1650 g

TEV

EI 84/29,5 S

90 VA

89 %

103,5

92

120

93,5

77

102,5

32,5

5,5

300 g

1650 g

TEV

EI 84/43,5

110 VA

87 %

117,5

106

120

93,5

77

102,5

45,0

5,5

325 g

2290 g

TEV

EI 84/43,5 S

130 VA

90 %

117,5

106

120

93,5

77

102,5

45,0

5,5

325 g

2290 g

TEV

EI 96/35,7

140 VA

88 %

114,5

100

133

107

87

115

40

5,5

475 g

2640 g

TEV

EI 96/35,7 S

160 VA

88 %

114,5

100

133

107

87

115

40

5,5

475 g

2640 g

TEV

EI 96/45,7

170 VA

90 %

124,5

110

133

107

87

115

50

5,2

570 g

3250 g

TEV

EI 96/45,7 S

210 VA

92 %

124,5

110

133

107

87

115

50

5,2

570 g

3250 g

TEV

EI 96/59,7

215 VA

90 %

138,5

124

133

107

87

115

64

5,5

600 g

3950 g

TEV

EI 96/59,7 S

250 VA

93 %

138,5

124

133

107

87

115

64

5,5

600 g

3950 g

TEV

EI 120/53

325 VA

90 %

152

133,5

172

133,5

109

150

65

8,5

970 g

6000 g

TEV

EI 120/53 S

385 VA

93 %

152

133,5

172

133,5

109

150

65

8,5

970 g

6000 g

TEV

EI 120/73

400 VA

91 %

172

153,5

172

133,5

109

150

85

8,5

1200 g

7600 g

TEV

EI 120/73 S

520 VA

94 %

172

153,5

172

133,5

109

150

85

8,5

1200 g

7600 g

Technical changes and optimisation reserved. All details are guide values, variations are possible.
