Three phase transformer 120 kVA test transformer


Datasheet as PDF

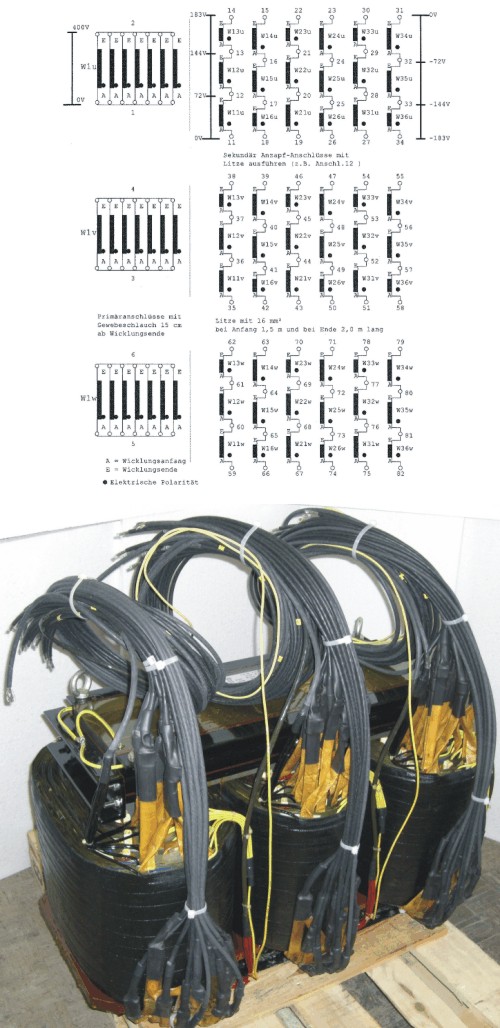

Three-phase transformer, test transformer


Technical data


3AC-isolating transformer
Voltage primary: 21 x 400 V
Voltage secondary: 36 x 72 V and 18 x 39 V
36 screen windings
Frequency: 50 Hz - 60 Hz
Construction: open, vacuum varnished
Weight: 570 kg
Copper weight: 220 kg
114 terminals, each 1,5 m long
18 air cooling canals
