BV 3011043a
|
|
|
Customer demand
|
|
|
To broadcast tone frequency untainted we are looking for a flat transformer with lateral connectors. The mounting should be possible with only one screw and may not add to the construction height. The transformer should be able to withstand stay fields of other components.
|
|
|
Solution
|
|
|

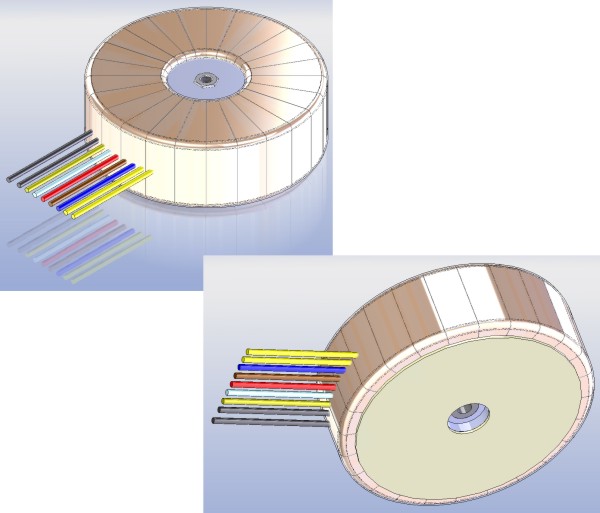

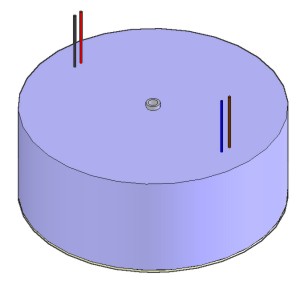

We develop a toroidal transformer that can broadcast tone frequency in best quality. Other strayfields are screened due to the very good inner coupling. The mounting can be done with one countersunk screw.
|
|
|
Technical data
|
|
|
Primary: 30 V
Secondary 1: 0-20-50 V 0,64 A
Secondary 2: 50 V 0,64 A
Secondary 3: 5 V 0,01 A
Frequency: 50 Hz - 15 kHz
Weight: 0,6 kg
Dimensions: Ø90 mm x 30 mm
|
|
|
Tabelle
|
|
|
Type
|
Pri voltage
|
Sec power
|
Frequency
|
Dimensions
|
Copper weight
|
Total weight
|
BV
|
|
d
|
h
|
|
ÜRHFLN
|
30 V
|
64 VA
|
50 Hz-15 kHz
|
Ø90
|
30
|
0,17 kg
|
0,6 kg
|
3011043a
|
|
TRODZR
|
11,3 V
|
200 VA
|
10 Hz-1kHz
|
Ø350
|
140
|
23 kg
|
41 kg
|
1202101
|
|
TRODZR
|
11,3 V
|
200 VA
|
1 kHz-5 kHz
|
Ø190
|
102
|
2,9 kg
|
7 kg
|
1202104
|
|
TRVDVT
|
230 V
|
1150 VA
|
50 Hz-1500 Hz
|
Ø230
|
95
|
2,8 kg
|
20 kg
|
2995100
|
|
Technical changes and optimisation reserved. All details are guide values, variations are possible.
|
04/2020
|
|
|
|
|
|

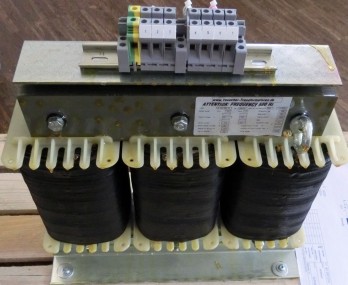

Metal sheet version
BV 2921014
TEOKWT EI 300/300/63
6,9 kVA p: 3 x 500 V 500 Hz
s: 3 x 200 V 20 A Dy5n
|
|
|
|
