High voltage transformer for space telescope


Datasheet as PDF

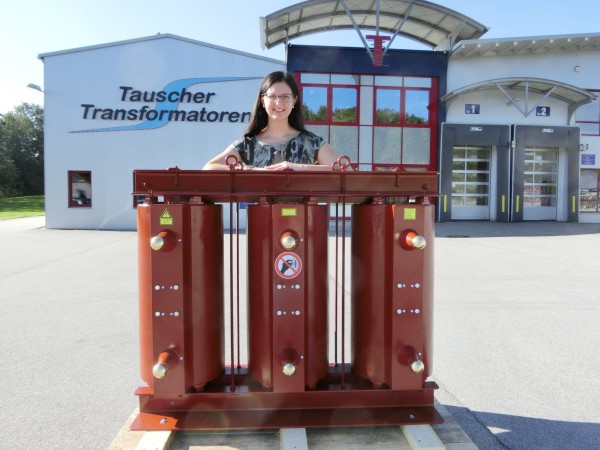

High voltage transformer for telescope

BV 16019001


Customer demand


For the power supply of a space telescope to monitor space we are looking for a three phase high voltage transformer. The system serves the purpose of recognising dangers caused by falling comets, meteorites and asteroids in time.


Solution


The transformer is designed individually according customer wish. The coils are each potted under vacuum with casted taps for the needed part voltages. With sufficient high distances we can guarantee the high voltage operation is possible without any further problems.


Technical data


Power: 45 kVA
Primary: 3 x 380 V
Secondary: 3 x 0-27,7-29,4-32,9-34,6 kV max 0,75 A
Dimensions: 1250 x 520 x 1065 mm
Weight: 950 kg
