Tranformers for US measurement devices

BV 32009002


Customer demand


For the operation of US american measurement devices we are looking for transformers that translate from x 400 V (230 V phase conductor to earth) to 3 x 208 V (120 V phase conductor to earth). We would like to have six output sockets with separate fusing, an inrush current limitation and a housing in IP 23. The transformers will be used in several areas thus should be movable, even in limited spaces.


Solution

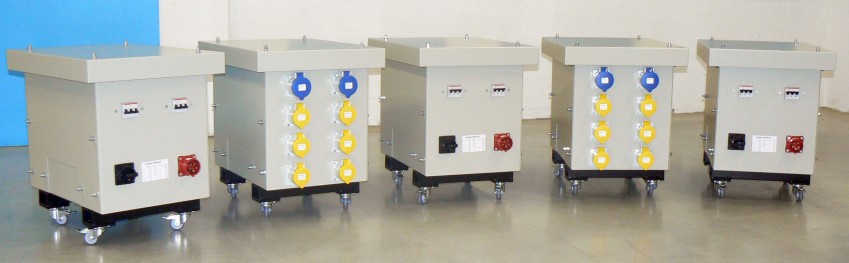

We build adaption transformers which are protected with a TSRD-inrush current avoider on the primary side. The output is equipped with fuses. All rolls are steering rollers, which do not protrude the housing.


Technical data


Power: 10 kVA
Primary: 3 x 400 V
Secondary: 3 x 208 V 27,8 A
Dimensions: 700 x 490 x 630 mm
Weight: 50 kg
