Three-phase splitter


Datasheet as PDF

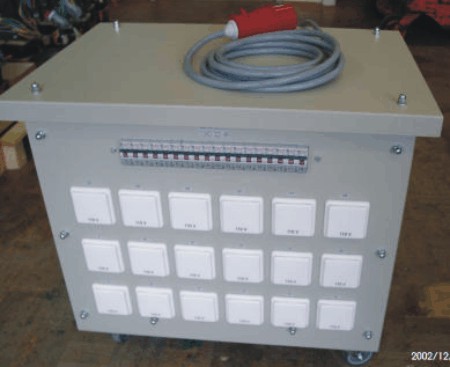

Three-phase transformer 3 x 400 V / 18 x 230 V / 21 kVA


Three-phase splitterThree-phase splitter


Field of application


Three-phase splitter e.g. for power consumption on a construction site, showmen trade, audio public address and illumination systems, teaching, research and development, ...


Technical data

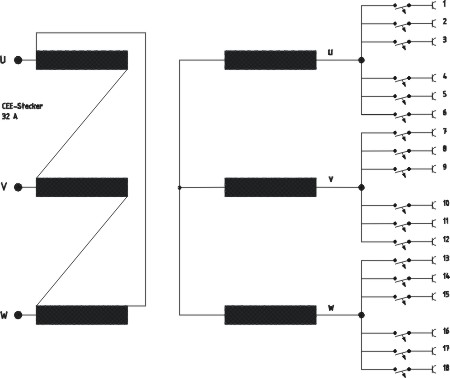

3 AC transformer
Vector group: Dy5n
Voltage primary: 400 V
Voltage secondary: 18 x 230 V
Rated power: up to 21 kVA
Frequency: 50 Hz
Construction: open, built in a housing IP 23
