Three-phase transformer 120 kVA 12pulse rectification


Datasheet as PDF

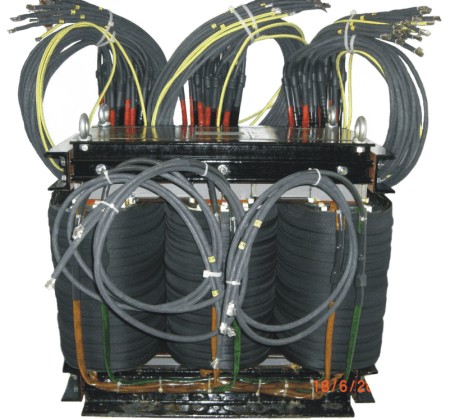

Three-phase transformer 120 kVAThree-phase transformer 120 kVA

Three-phase transformer 120 kVA


Application


3AC-isolating transformer

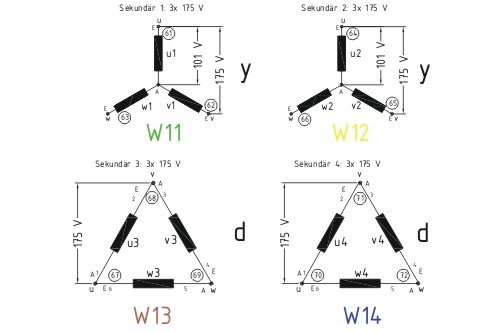

Vector group: Dyydd
Voltage primary: 380 V
Voltage secondary: 175 V
Frequency: 50 Hz - 60 Hz
Construction: open
Weight: 570 kg
Copper weight: 208 kg

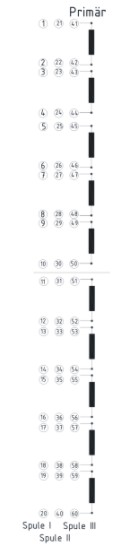

84 terminals, each 1 m long
9 cooling channels
Sec: 2 x 6 phases with each 60° phase shift
