Potted toroidal transformers with pins 50 VA - 100 VA


Datasheet as PDF
Potted toroidal transformers (TRVTP) in a round housing type VR, version with pins

ceenergyvde61558_vnk


Toroidal transformers with pinsr17

BV 1621324b

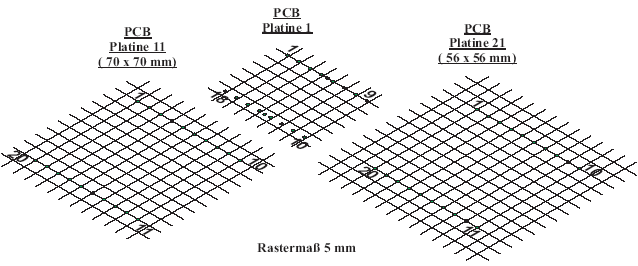

Pin distance


Table


Power

Dimensions in mm

Central hole

Sagging

Board nr.

Pin distance

Pin nr

Total
weight

D3

H2

50 VA

Ø 87

42

5,1

SW 8

21

45

9 x 5

0,80 kg

80 VA

Ø 98

44

6,1

SW 10

21

45

9 x 5

1,10 kg

100 VA

Ø 105

52

8,1

SW 10

11

45

9 x 5

1,30 kg

Technical changes and optimisation reserved. All details are guide values, variations are possible.

02/2012
